The MULTI-BOX MBFIX mast mounting system is used for simple, safe and flexible mounting of industrial enclosures on round masts or pipes.

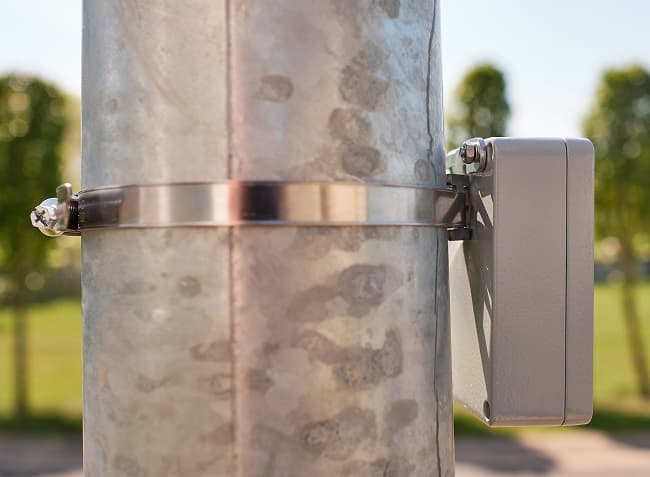

Possible applications are installations on lighting poles, traffic lights or road signs. Connection of devices in traffic and security technology such as cameras, motion detectors, access controls or other surveillance systems. The raised installation on the pole prevents external access and damage due to vandalism.

The mast mounting bracket and all accessories are made of stainless steel. Therefore they are suitable for outdoor installation.

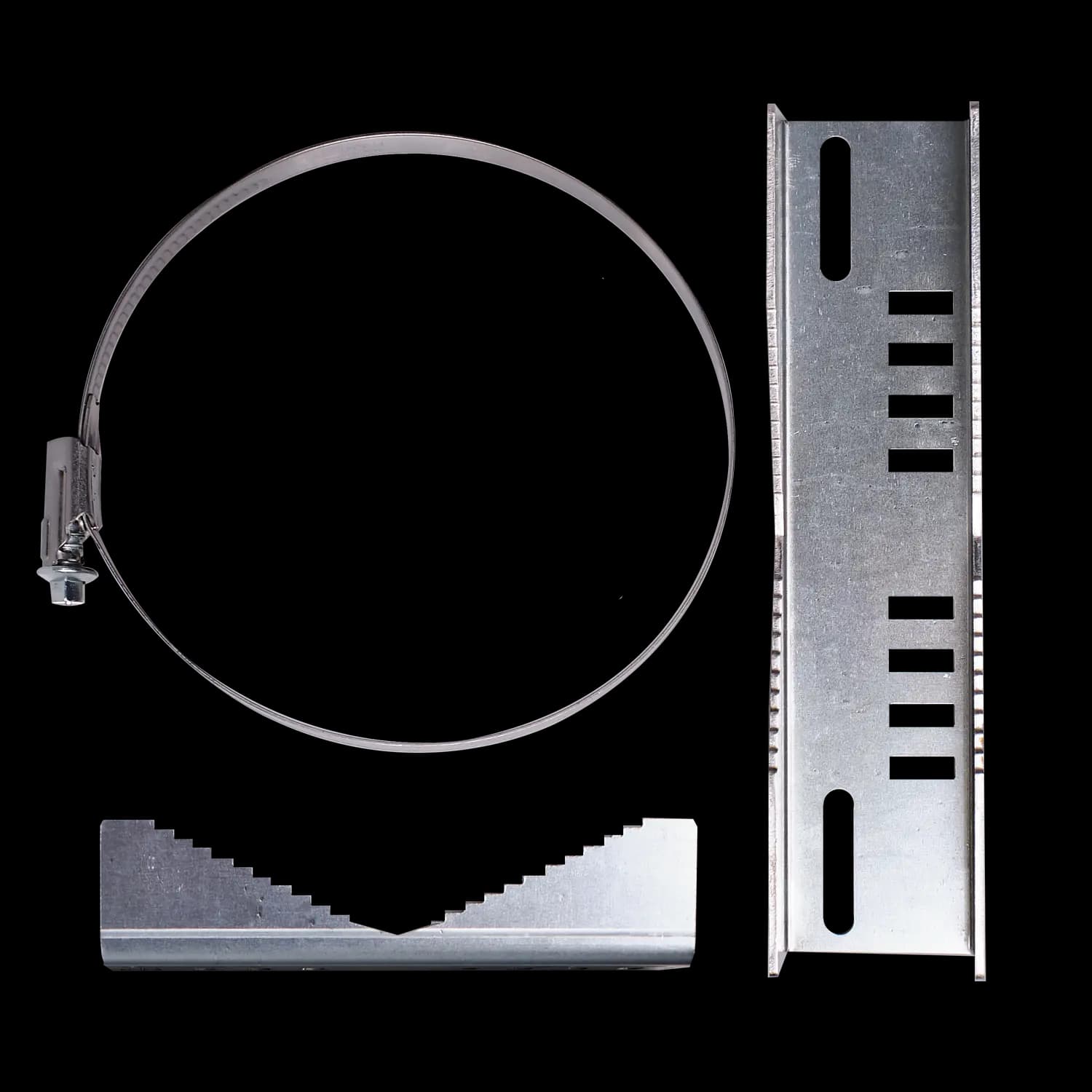

The set consists of one bracket with the required screws and washers. If necessary, it is also possible to use two brackets per enclosure.

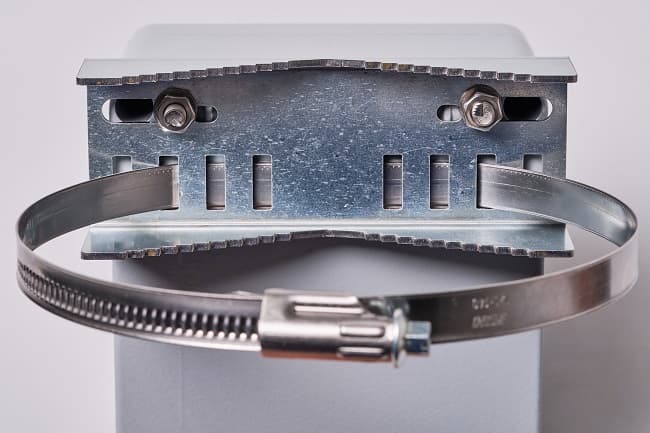

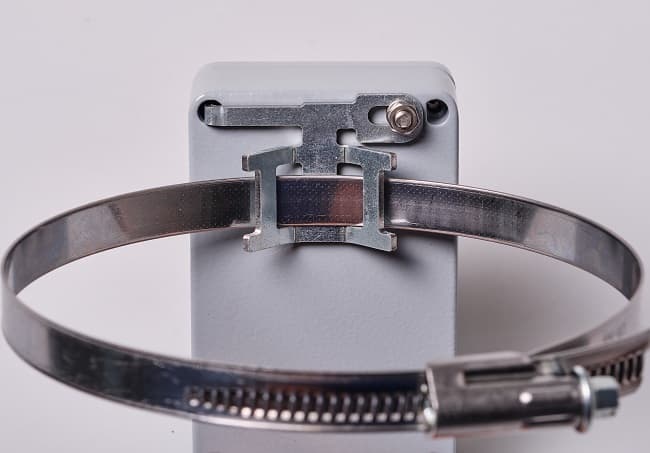

The mounting of the bracket is done with stainless steel clamps. These are not included in the standard scope of delivery. The required diameter should be defined by the customer when ordering. Possible clamping ranges of the clamps are diameters 40 to 320 mm.

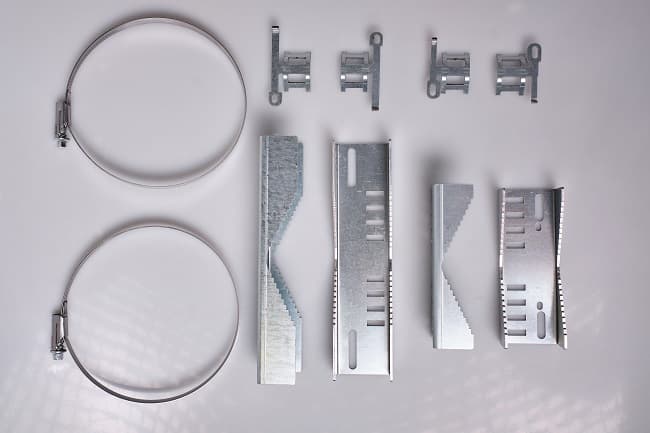

Pole mounting set MBFIX

MBFIX M4 XS BM4 x 18

MBFIX M4 XS BM4 x 24

MBFIX M4 S BM4 x 20

MBFIX M6/M4 M BM4 x 18

MBFIX M6/M4 M BM4 x 20

MBFIX M6/M4 M BM6 x 25

MBFIX M6/M4 M BM6 x 30

MBFIX M6/M4 M BM6 x 35

MBFIX M6 L BM6 x 35

MBFIX M6 L BM6 x 40

Article no.	Type	Length	Width	Height
0313000020	MBFIX M6/M4 M BM4 x 18	128 mm	32 mm	48 mm
0313000021	MBFIX M6/M4 M BM4 x 20	128 mm	32 mm	48 mm
0313000022	MBFIX M6/M4 M BM6 x 25	128 mm	32 mm	48 mm
0313000023	MBFIX M6/M4 M BM6 x 30	128 mm	32 mm	48 mm
0313000024	MBFIX M6/M4 M BM6 x 35	128 mm	32 mm	48 mm
0313000025	MBFIX M6 L BM6 x 35	197 mm	32 mm	48 mm
0313000026	MBFIX M6 L BM6 x 40	197 mm	32 mm	48 mm
0313000016	MBFIX M4 XS BM4 x 18	51 mm	35 mm	17 mm
0313000017	MBFIX M4 XS BM4 x 24	51 mm	35 mm	17 mm
0313000019	MBFIX M4 S BM4 x 20	68 mm	35 mm	17 mm

Article no.	Type	Length	Width	Height
0313000020	MBFIX M6/M4 M BM4 x 18	128 mm	32 mm	48 mm
0313000021	MBFIX M6/M4 M BM4 x 20	128 mm	32 mm	48 mm
0313000022	MBFIX M6/M4 M BM6 x 25	128 mm	32 mm	48 mm
0313000023	MBFIX M6/M4 M BM6 x 30	128 mm	32 mm	48 mm
0313000024	MBFIX M6/M4 M BM6 x 35	128 mm	32 mm	48 mm
0313000025	MBFIX M6 L BM6 x 35	197 mm	32 mm	48 mm
0313000026	MBFIX M6 L BM6 x 40	197 mm	32 mm	48 mm
0313000016	MBFIX M4 XS BM4 x 18	51 mm	35 mm	17 mm
0313000017	MBFIX M4 XS BM4 x 24	51 mm	35 mm	17 mm
0313000019	MBFIX M4 S BM4 x 20	68 mm	35 mm	17 mm
