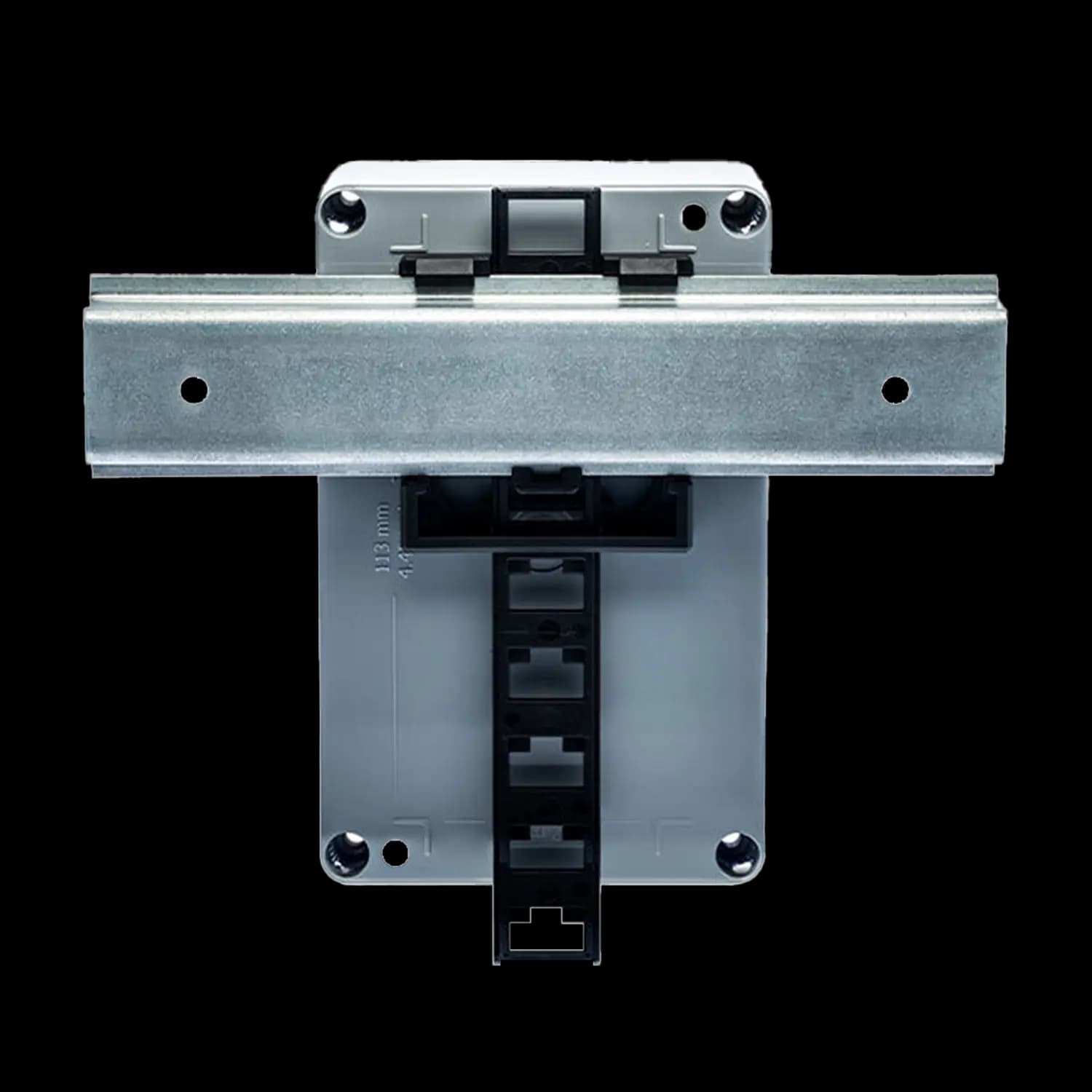

MULTI-BOX TSFIX35 DIN rail adapter is used for simple, safe and flexible mounting of industrial enclosures and other components on mounting rails according to DIN EN 60715 TH35.

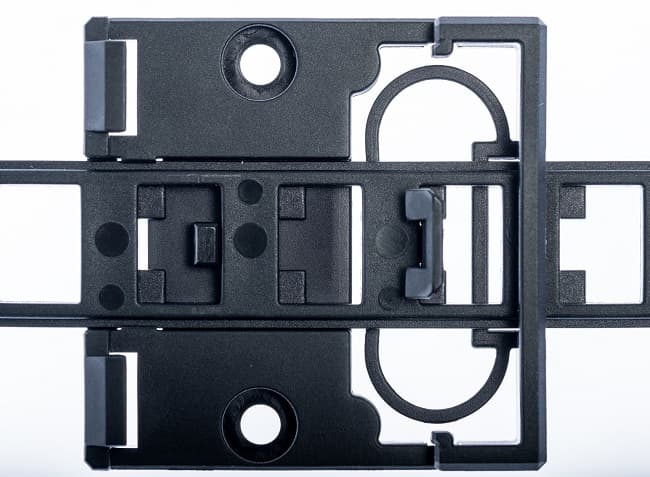

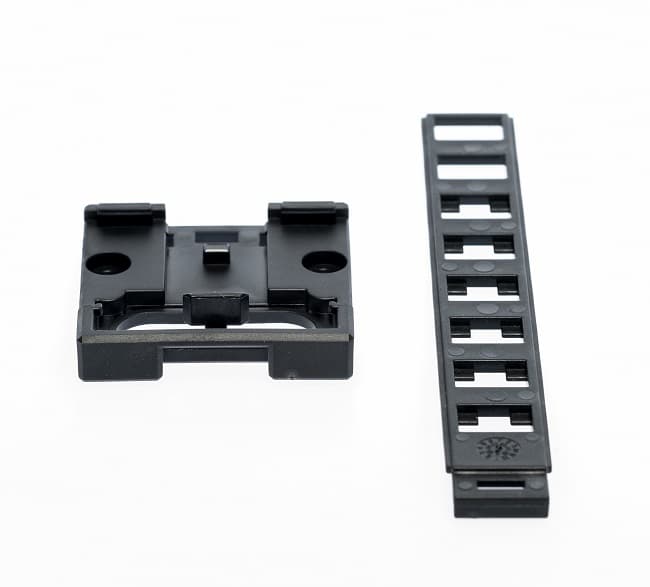

The adapter is made of self-extinguishing plastic polyamide 6 (PA6) in black RAL 9005. It consists of two components, a base and a latch. The latch can be snapped into the base in different positions depending on the height of the component to be fixed and can be shortened if necessary.

Following components are included in the scope of delivery:
- 1 x Base
- 1 x Latch
- 2 x Screw for direct screwing into plastic core hole d=3.2 mm
- 4 x Screw universal for wall thicknesses 2.5 - 4.5 mm (through hole d=3.5 mm)&nbsp;

If necessary, two adapters can be used per enclosure.

Article no.	Type	Length	Width	Height	PDF	DXF	3D
0314000009	TSFIX35	50 mm	51 mm	12 mm
0314000009	0314000009	0 mm	0 mm	0 mm

Article no.	Type	Length	Width	Height	PDF	DXF	3D
0314000009	TSFIX35	50 mm	51 mm	12 mm
0314000009	0314000009	0 mm	0 mm	0 mm

DIN-rail adapter TSFIX35
